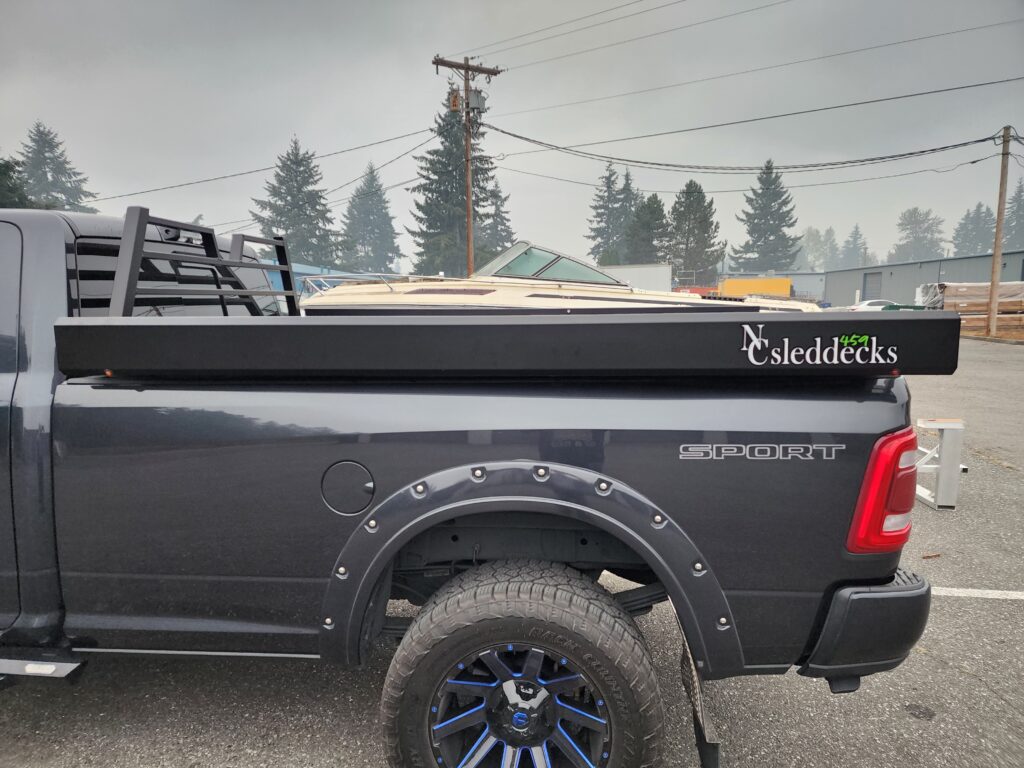

Diamond
2022/2023
$4399
2023 Deck Features

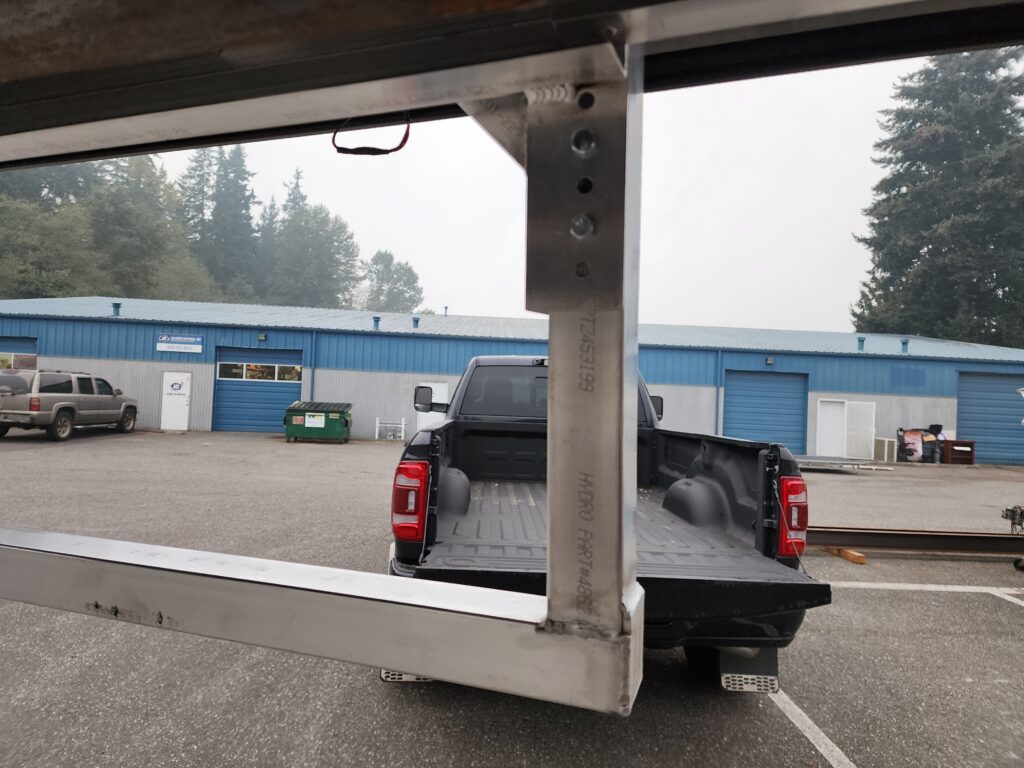

Ease of use:
Expandable sides at the touch of your fingers with a spring loaded plunger pin tucked out of site.
UHMW buffers between the aluminum for smooth expansion and contraction.
Expanded deck is 8' wide and contracted it is 7'.
Loading options:

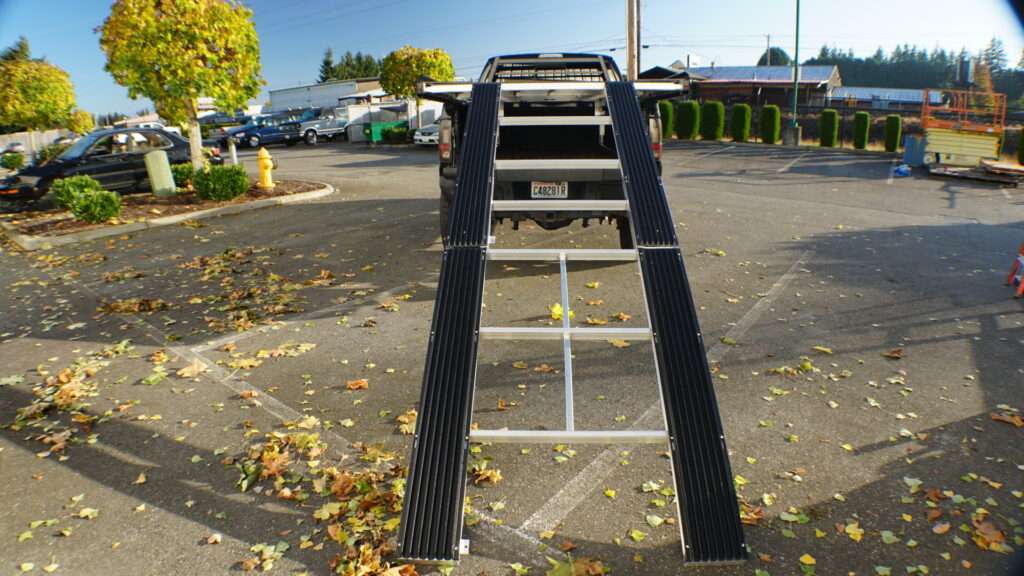

2 piece lightweight ramp that is 11' long for unintimidating and safe loading.
Leave the sides tucked in and load one sled in the center.
Expand sides to haul 2 sleds.
Lighting:
Loading lights embedded into the side rails so to not blind you when loading but look super cool while driving down the road.
Light switch to turn on load lights and under bed lights on single switch under the deck.

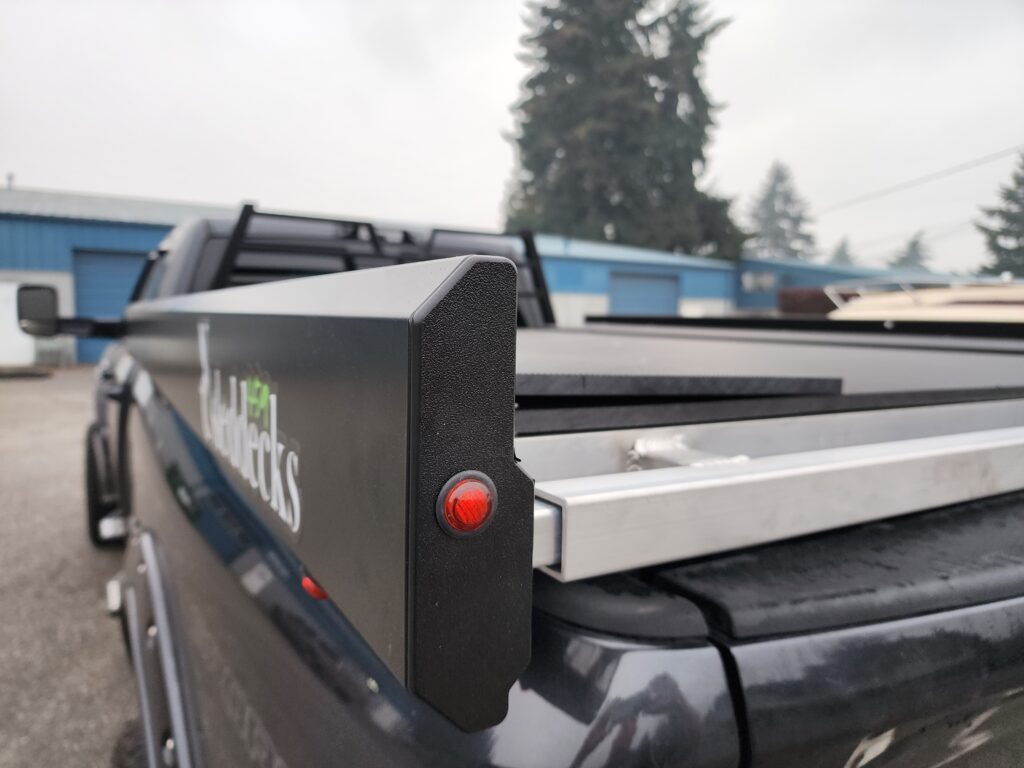

3/4" clearance lights embedded along sides
3/4" running/brake/turn lights embedded in back
Underdeck loading light
Looks and functionality:

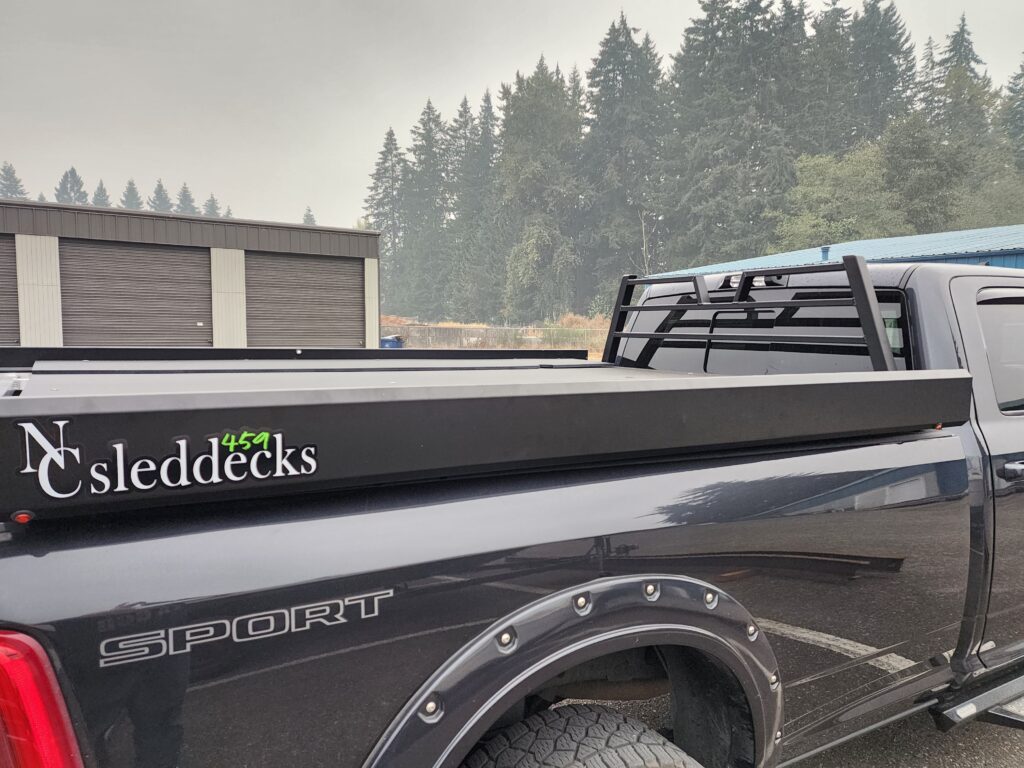

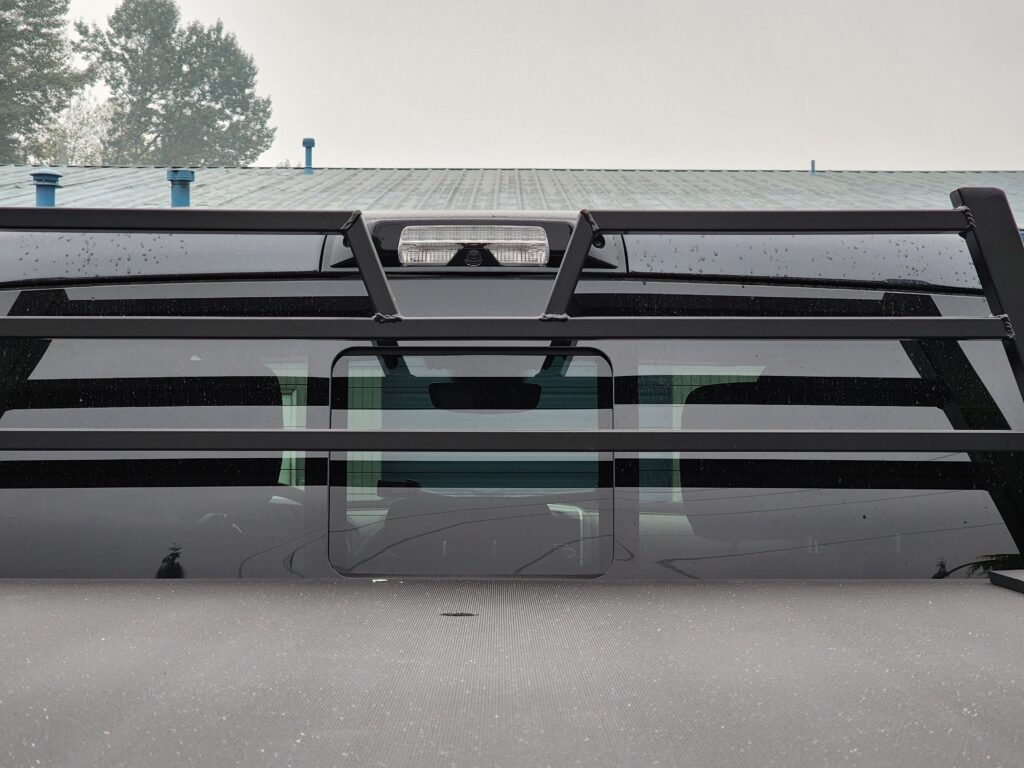

Black powder coated headache rack with notch for 3rd brake light/bed camera and sides to match the black decking. When not in use the sides can be collapsed to be less conspicuous.
Adjustable height legs to level the height to fit the height of your truck bed.
Feet run front to rear clearing storage space under the deck and allowing deck to fit in any 6'1" to 8' bed.
Above configuration also makes loading the deck easier, in many cases one person can do this.

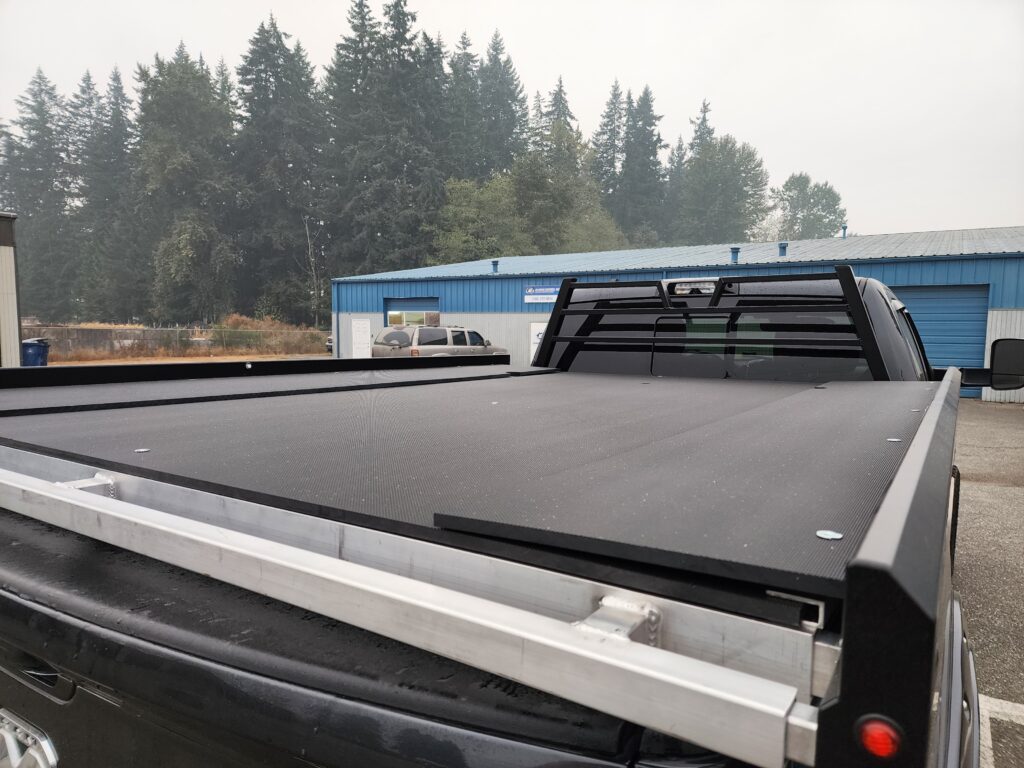

Deck is HDPE marine anti-skid material, never rots, not slick when wet, no need for glide and main deck is one giant sheet to keep your bed dry in all weather conditions. (glides can be added if desired).
Holes predrilled and threaded to accept QuickClamp hoops in the front.

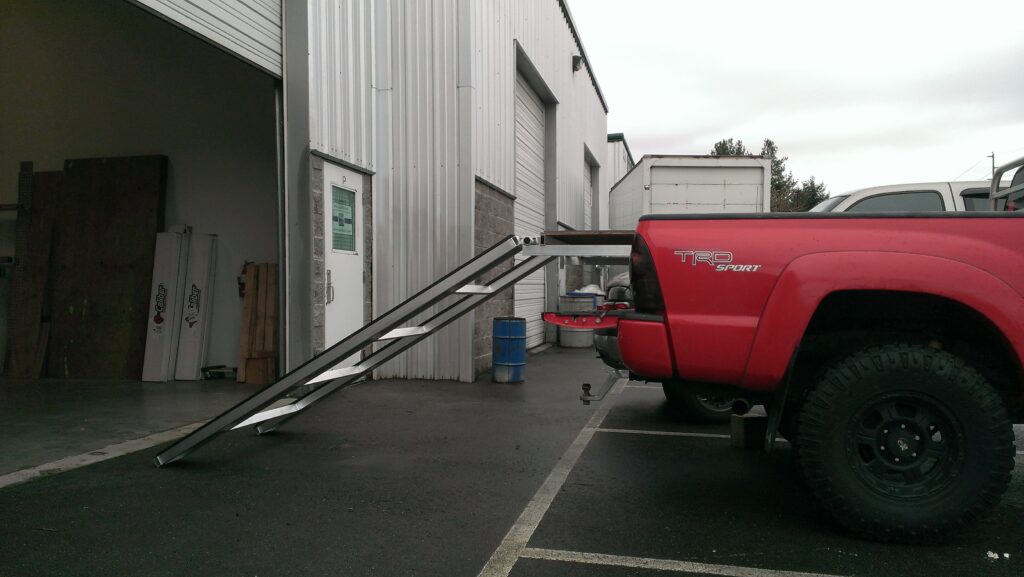

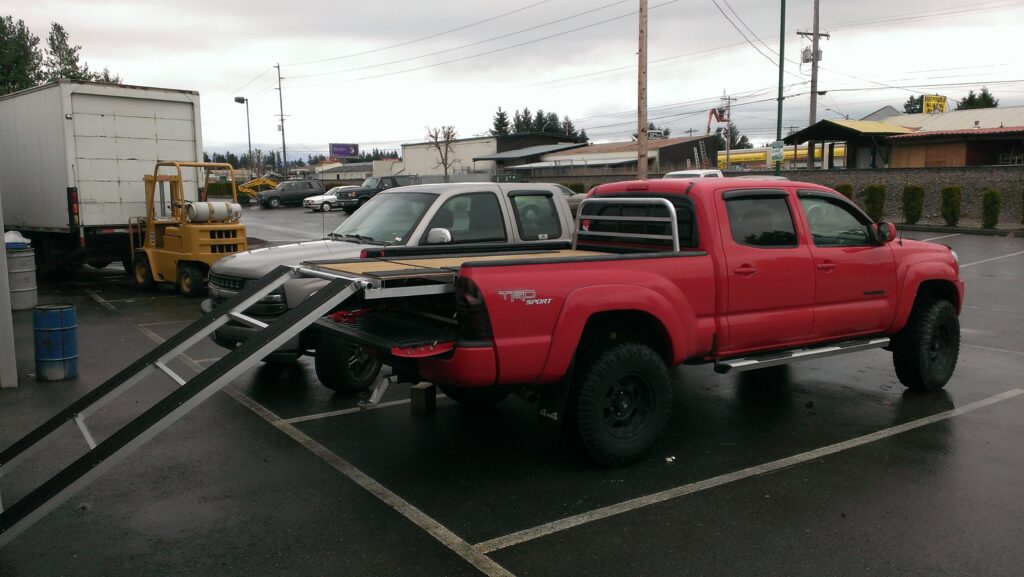

Tacoma Single Deck
2021/22
$3299
Price includes a plywood deck that fits 6' Toyota Tacoma bed.
Decks come with an 8' ramp and carbide glides. Design can be modified to fit other mid-sized trucks
Super clamps are additional $170 per front and $140 per rear with the purchase of any deck.
Vinyl graphics installed on the side panels available for an additional $175.
Call for available designs

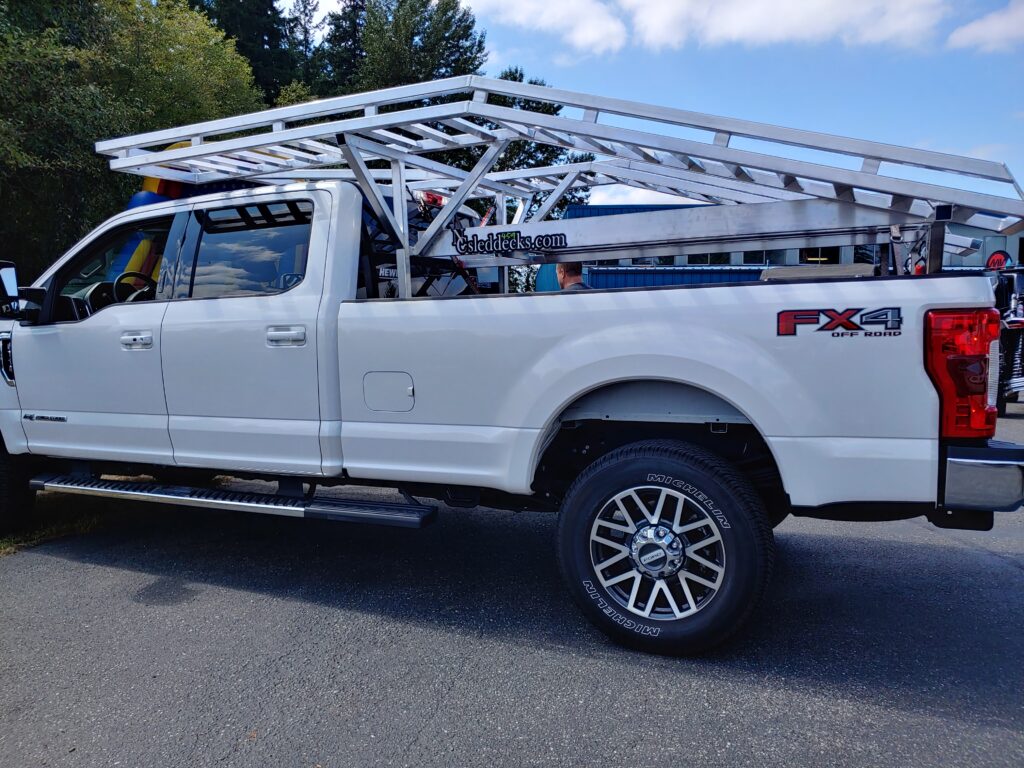

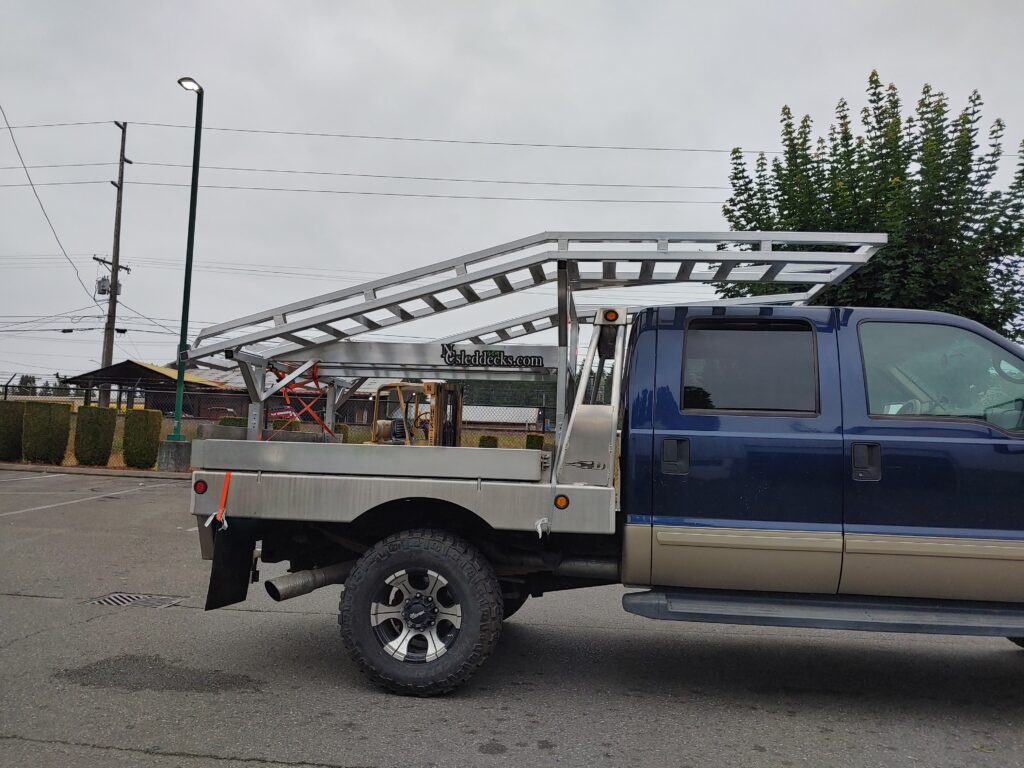

SxS Rack Short Box
$3699 plus tax
Price includes 2-11ft telescoping ramps and adjustable height legs like our sled decks.
There is 74 inches between the rub rails for the wider machines and long enough for most 4 seater Sxs's
SxS Rack Long Box
$3799 plus tax
They can be extended to fit Can Am X3 Maxx or 4 seat Polaris Pro R
